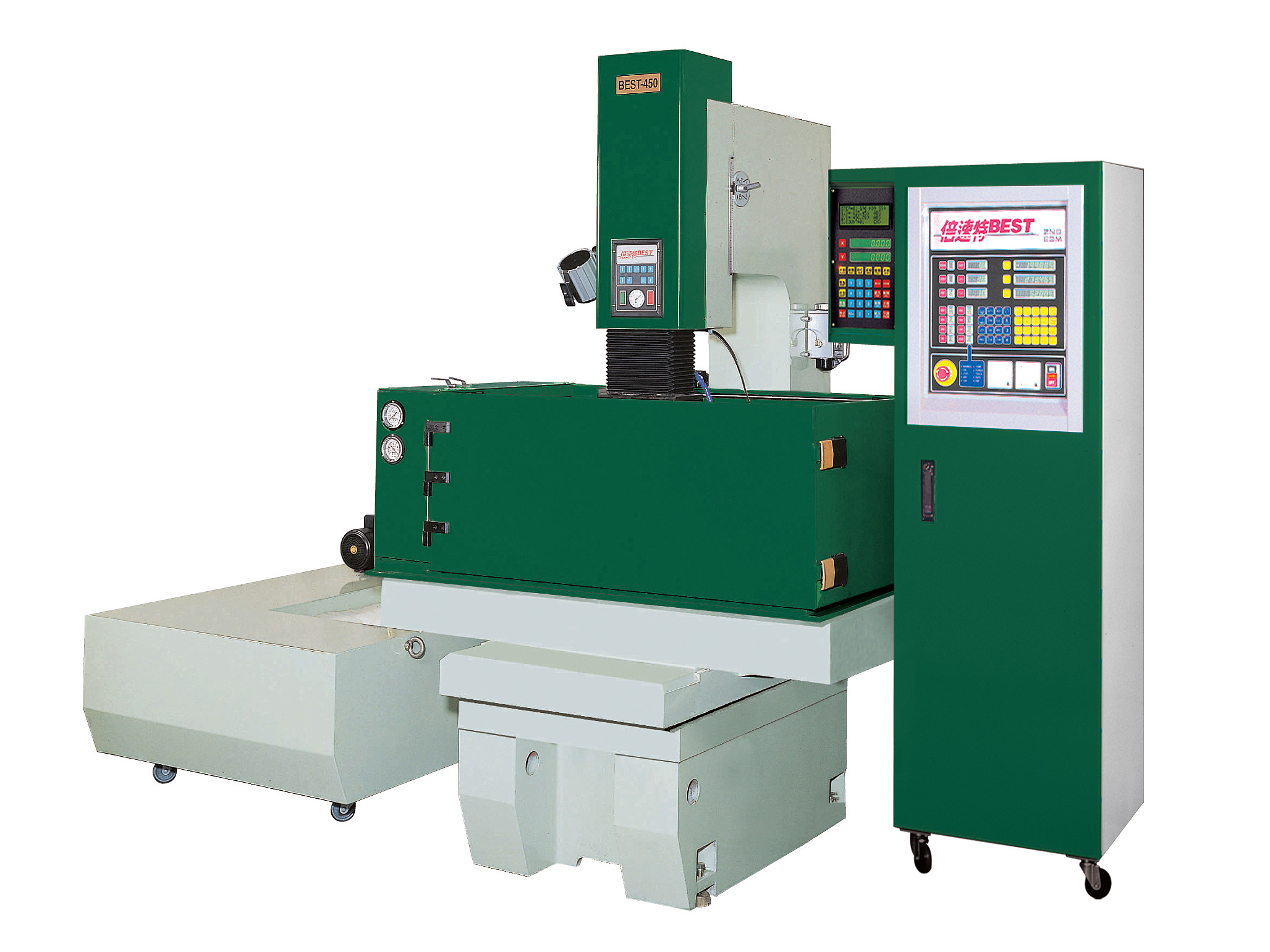

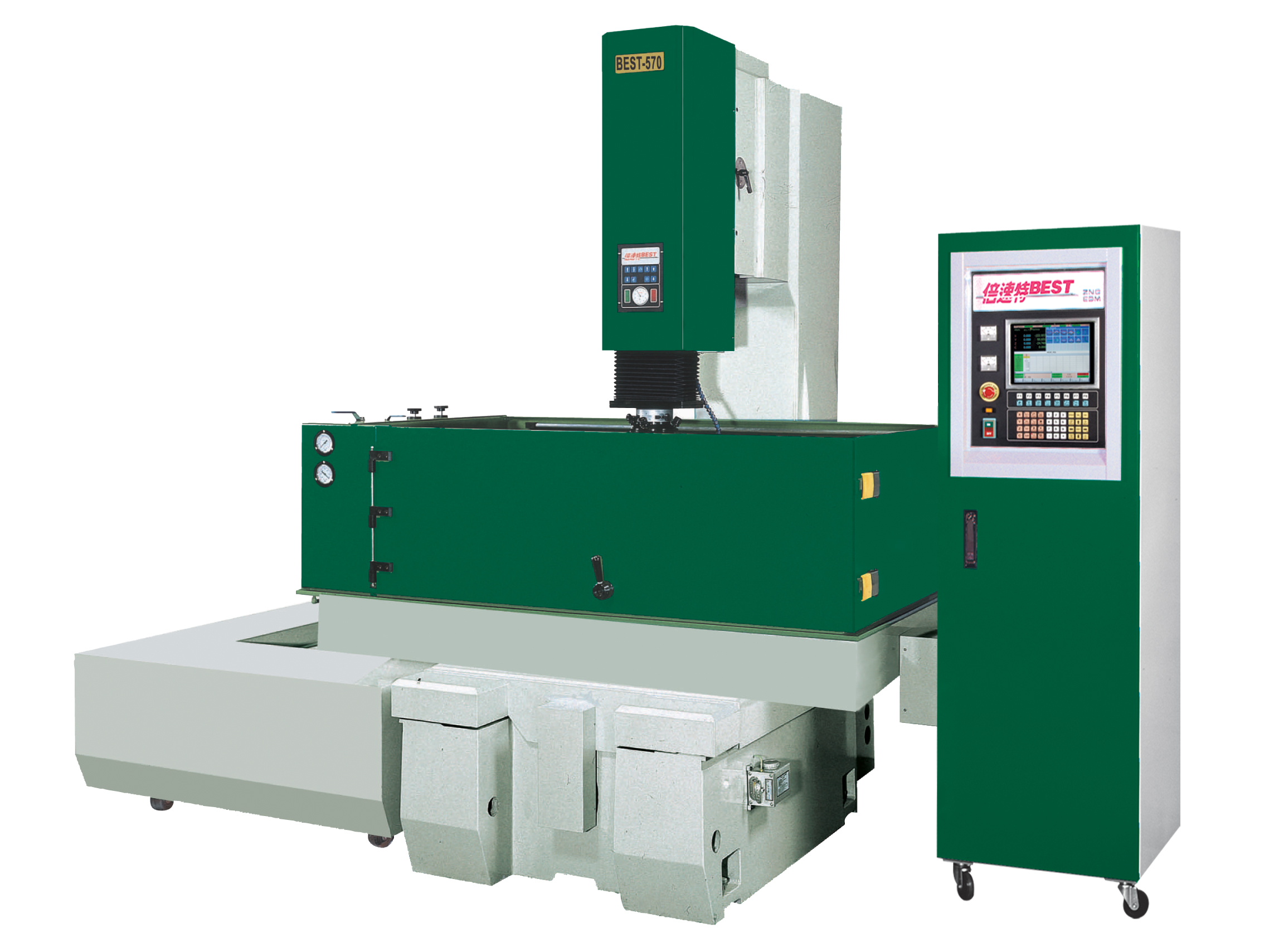

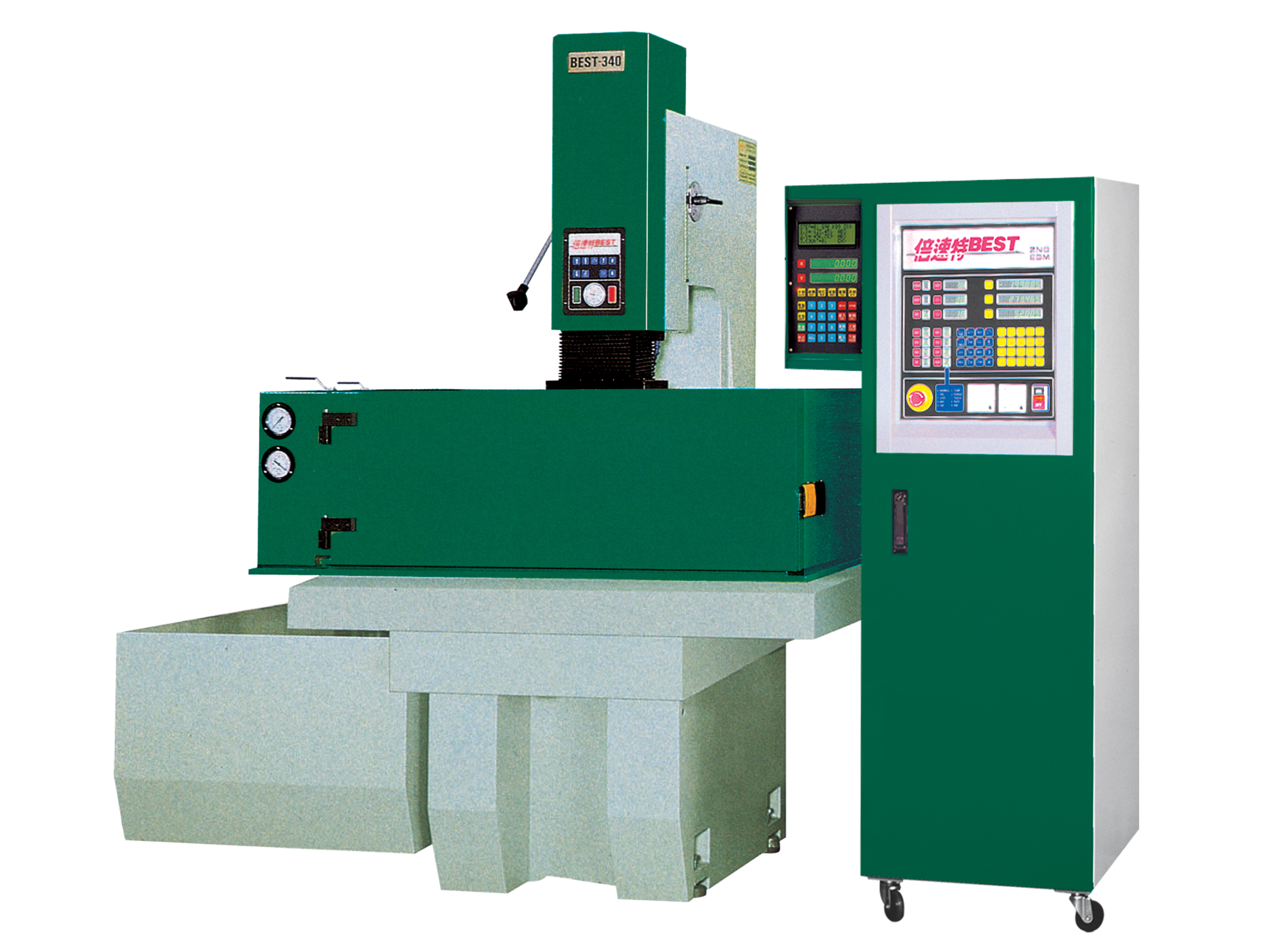

BEST EDM PNC340/448/450/560

1. The electric control box adopts front and rear wiring, single-chip modular overall design, and the upper and lower layers are designed to separate high-temperature components and low-temperature electronic components into a dual-circulation cooling system, which is stable and durable.

2. Axial transmission (X, Y, Z) all use precision ball screws and optical rulers, which are light in transmission and accurate in positioning.

3. Programmable 10-segment parameters, fixed depth, processing conditions, automatic multi-segment processing, which can suppress electrode wear and carbon deposition.

4. The axial X, Y shift system automatically locates the holes, and the Z axis can be continuously processed.

5. Special processing of tungsten steel.
